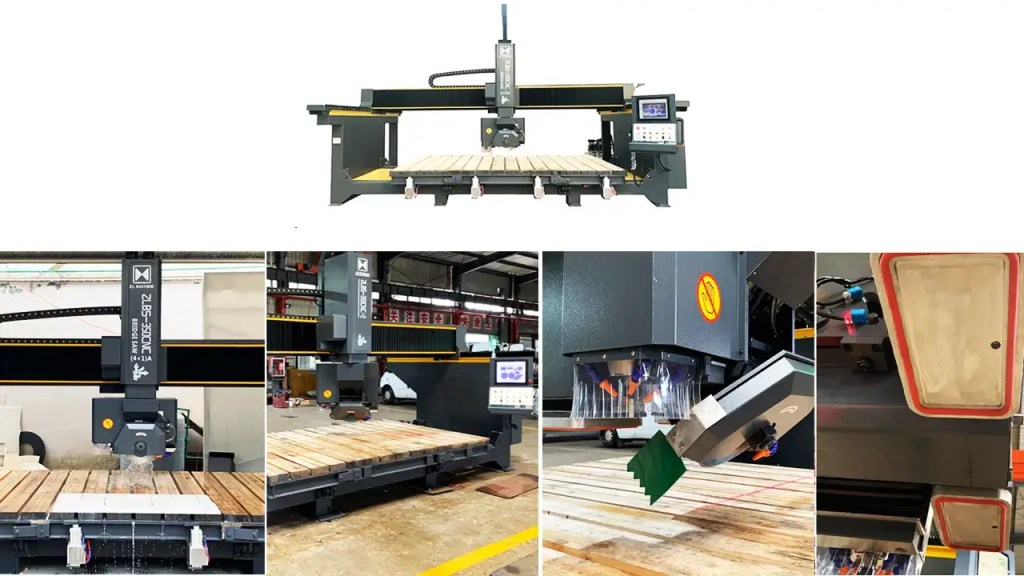

The 4+1 Axis CNC Bridge Saw, a groundbreaking machine that’s more than just a tool—it’s a game-changer. Designed for those working with marble, granite, quartz, and other stone materials, this machine combines cutting-edge technology with advanced functionality. If you’re looking to elevate your stone-cutting operations, the 4+1 Axis CNC Bridge Saw is the solution you need to stay ahead of the competition.
What Is the 4+1 Axis CNC Bridge Saw?
The 4+1 Axis CNC Bridge Saw is a state-of-the-art machine built for efficiency, precision, and ease of use. With smart programming and advanced features, this equipment simplifies the process of cutting, chamfering, and shaping stone materials, making it ideal for everything from countertops to intricate stone designs. Whether you’re working with marble, granite, or even ceramic, this tool offers unparalleled versatility.
Key Features of the 4+1 Axis CNC Bridge Saw
- High-Resolution Camera Technology: The machine is equipped with a high-resolution camera that captures the exact dimensions of the stone slab, ensuring precise cuts every time.
- User-Friendly Interface: The industrial computer with a 17-inch touchscreen makes it easy to operate. Users can control the machine’s functions directly from the screen, streamlining the process.
- Powerful Motor System: With a 15 kW main motor and a 5.5 kW spindle motor, this machine is designed for heavy-duty tasks, including creating basin and faucet holes with high precision.
- Automatic Tool Setting Gauge: To guarantee optimal accuracy, the machine comes with an automatic tool-setting gauge, ensuring that all blades are positioned correctly before starting any operation.
- Vacuum Suction for Efficient Handling: The vacuum-assisted suction cups make handling large slabs easier, especially when dealing with overlapping cuts, improving workflow efficiency.
- Built-in Drawing Library & File Import: The machine’s built-in library for conventional shapes and the ability to import DXF files provide flexibility, allowing users to work on custom designs effortlessly.
- Adjustable Worktable: The worktable can tilt up to 85 degrees, reducing strain on operators and making it easy to load and unload stone slabs.
- Safety Features: Optional protective doors with safety locks ensure that operators can work safely without compromising on the machine’s performance.
Step-by-Step Guide to Using the 4+1 Axis CNC Bridge Saw
This CNC Bridge Saw simplifies the stone-cutting process significantly. Here’s how it works:
- Capture an Image: The integrated camera captures an image of the stone slab, allowing for precise alignment.
- Upload Layout Drawing: Once the image is captured, upload a layout or design to overlay on the slab’s image.
- Processing Begins: The machine automatically generates the cutting sequence and path. The system secures the slab with its cylinder mechanism before cutting.
- Automatic Cutting: The spindle motor and milling cutter perform the cutting operation, and after the process, the vacuum suction cups lift the slab for easy handling.
This streamlined process ensures accuracy and reduces errors, even for complex cuts such as polygons, circles, and L-shaped countertops.
Technical Specifications
- Worktable Size: 3600 x 2000 mm
- Maximum Processing Size: 3600 x 2000 x 70 mm
- Blade Diameter: 350 mm
- Main Motor Power: 15 kW
- Spindle Motor Power: 5.5 kW
- Total Power Consumption: 25 kW
- Suction Cup Lifting Capacity: 200 kg
- Water Consumption: 2 cubic meters/hour
- Total Weight: 4.6 tons
- Dimensions: 5750 x 3260 x 2500 mm (including a camera height of 3800 mm)
These specifications ensure that the machine meets the highest demands for both precision and durability, making it suitable for various applications.
Why the 4+1 Axis CNC Bridge Saw Is a Game-Changer
The 4+1 Axis CNC Bridge Saw offers a combination of precision, speed, and ease of use, making it indispensable for professionals in the stone processing industry. Here’s why:
- Precision Cutting: The integrated camera and automatic tool-setting gauge ensure that every cut is executed with pinpoint accuracy, saving time and reducing material waste.
- Versatile Performance: Whether you’re working with natural stones or engineered materials like quartz, this machine handles it all with ease. It can perform a variety of cuts, from simple straight lines to intricate custom designs.
- User-Friendly Operation: The 17-inch touchscreen interface simplifies control, making it easy for anyone to operate, even without extensive technical expertise.
- Global Reach: With more than 15 years of experience and 30 advanced machines in operation worldwide, the 4+1 Axis CNC Bridge Saw is trusted by professionals across Europe, North America, and beyond.
The 4+1 Axis CNC Bridge Saw represents a leap forward in stone processing technology. From its precision cutting capabilities to its user-friendly design, this machine is designed to help businesses increase efficiency and deliver top-tier results. Whether you’re a small shop or a large manufacturer, the 4+1 Axis CNC Bridge Saw offers the performance, versatility, and reliability needed to take your stone-cutting operations to the next level.
