Product Description
GripIt® Plasterboard Fixings are professional‑grade anchors designed to deliver maximum strength in hollow plasterboard walls. Their patented slim wings fold out behind the board, creating a wide load‑bearing footprint that outperforms traditional plugs and anchors.
Manufactured in the UK, GripIt® has become the industry standard for tradespeople, contractors, and DIY installers since its launch in 2012. The fixings are 100% reusable, quick to install, and compatible with all plasterboard thicknesses from 9.5 mm and above.
Ideal for mounting heavy items such as TVs, radiators, boilers, cabinets, shelves, mirrors, and more.
Key Features
- Supports loads up to 113 kg
- Patented folding wings for maximum grip
- Fits all plasterboard types
- Removable and reusable
- Fast, clean installation
- Color‑coded sizes for easy selection
- UK‑manufactured
Applications
- Wall‑mounted TVs
- Kitchen cabinets & bathroom cabinets
- Radiators & boilers
- Shelves & storage units
- Curtain rails & towel rails
- Mirrors & picture frames
- Heavy fixtures on hollow walls

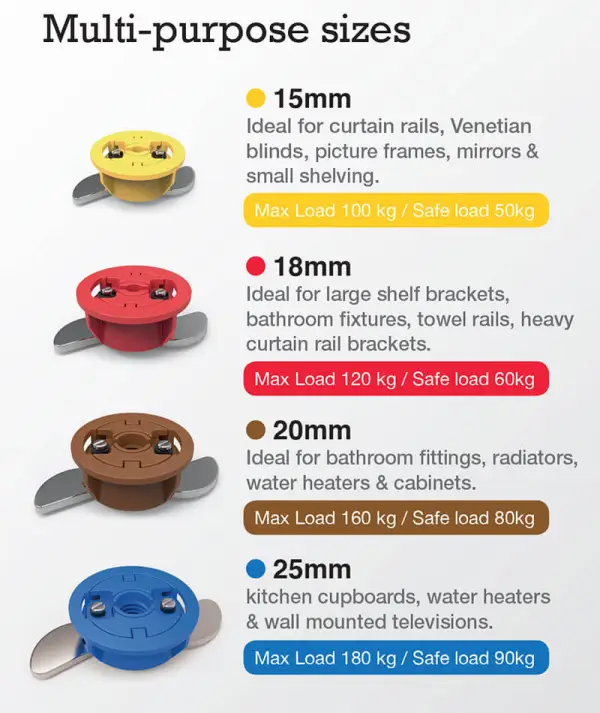

Available Sizes (Color‑Coded)
(All data sourced from your attached GripIt® technical sheets)
| Size | Diameter | Screw Size | Safe Tension Load | Safe Shear Load | Safe Cantilever Load (50–150 mm) |
|---|---|---|---|---|---|
| 15 mm (Yellow) | 15 mm | 4.0 mm × 25 mm | 20 kg | 71 kg | 30 kg → 16 kg |
| 18 mm (Red) | 18 mm | 5.0 mm × 30 mm | 20 kg | 74 kg | 32 kg → 18 kg |
| 20 mm (Brown) | 20 mm | M6 × 30 mm | 20 kg | 93 kg | 36 kg → 24 kg |
| 25 mm (Blue) | 25 mm | M8 × 30 mm | 20 kg | 113 kg | 40 kg → 25 kg |
Installation Guide
(All steps sourced from your attached GripIt® installation sheet)
- Mark the fixing positions and drill the required hole diameter.
- Clean the hole by brushing and blowing out dust.
- Insert the fixing wings‑first and tap until flush with the plasterboard.
- Turn the central screw clockwise to lock the wings behind the board.
Technical Specifications
| Specification | Value |
|---|---|
| Minimum board thickness | 9.5 mm |
| Hole diameter | Matches fixing size (15–25 mm) |
| Minimum spacing | 25–100 mm depending on size |
| Minimum edge distance | 20–30 mm depending on size |
| Reusability | 100% reusable |
| Origin | UK |
Grip-It is a a UK based plasterboard fixing company, manufactured in Britain and are The World’s Ultimate Plasterboard Fixings on the market. When GripIt® was launched on the market in 2012 it provided an instantly popular and winning solution to an enduring problem. Large stores, tradespeople and DIYers welcomed this simple method of wall hanging on plasterboard because of its ease of use, high performance and convenience – and because it instantly trumped all other similar products on the market.
But the story behind this seemingly simple product – and the future ahead of it –demonstrates great innovation, problem-solving and strength, in both the product and the people behind it.
Which color GripIt® do I need?
The four different colors represent each GripIt® size which can hold different weights in plasterboard. Please visit our DIY Page to help you find the correct fixing.
So Easy Just…
Reviews
There are no reviews yet
