Stainless Steel Tactile Warning Studs (UAE Compliant)

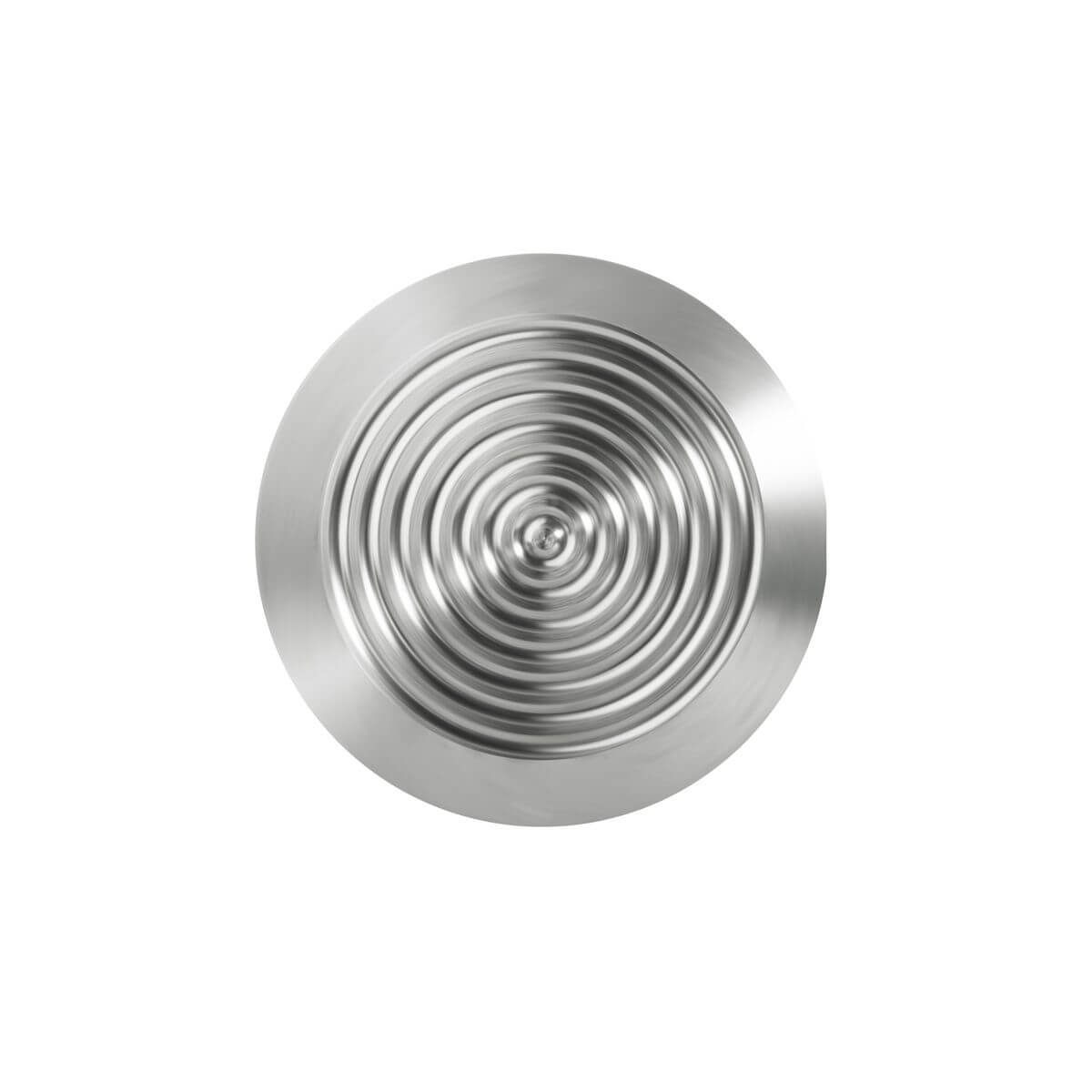

SS316L Stainless Steel Tactile Warning Studs – UAE Standard Detectable Warning Indicators

Our SS316L Stainless Steel Tactile Warning Studs offer a durable, visually refined solution for creating detectable warning surfaces across public, commercial, and government spaces in Dubai, Abu Dhabi, and the wider UAE. Manufactured from low-carbon marine-grade SS316L stainless steel, these indicators provide superior resistance against pitting, corrosion, intense UV exposure, and heavy pedestrian traffic.

Designed to assist visually impaired pedestrians, these studs strictly adhere to local accessibility regulations, including the Dubai Universal Design Code, Abu Dhabi UPC Accessibility Standards, and RTA Tactile Layout Requirements.

Key Features & Advantages

• Low-Carbon Marine-Grade SS316L Construction: Engineered specifically for harsh UAE indoor and outdoor climate conditions with non-corrosive, long-lasting durability. • Dual Installation Options: Choose between Mono Pin for traditional mechanical core-drilling or 3M VHB industrial self-adhesive backing for drill-free, rapid installation on polished stone or tile. • Anti-Slip Concentric Rings: Precision-machined top surface offering R11–R13 slip resistance for pedestrian safety in wet or dry conditions. • Full Regulatory Compliance: Meets ISO 23599 international standards and local UAE municipal design codes. • Custom Options Available: Custom finishes (brushed, mirror, matte) and custom metals (brass, bronze, copper) available for architects, consultants, and special project specifications.

Technical Specifications

Material: Marine-Grade SS316L Stainless Steel (Optional: Brass, Copper, Bronze) Fixing Types: Mono Pin (Mechanical fixing) / 3M VHB Industrial Adhesive Backing Design Standards: UAE Standard Dimensions (Dubai Code & Abu Dhabi UPC Compliant) Surface Pattern: Precision Anti-Slip Concentric Grooves Slip Resistance: R11 – R13 Substrates: Granite, Marble, Terrazzo, Concrete, Ceramic & Porcelain Tiles Compliance: Dubai Universal Design Code, Abu Dhabi UPC, RTA Guidelines, ISO 23599

Major UAE Projects Supplied & Installed

Trusted by government entities, master developers, and major contractors across the UAE, our tactile studs are installed in key infrastructure and commercial projects, including:

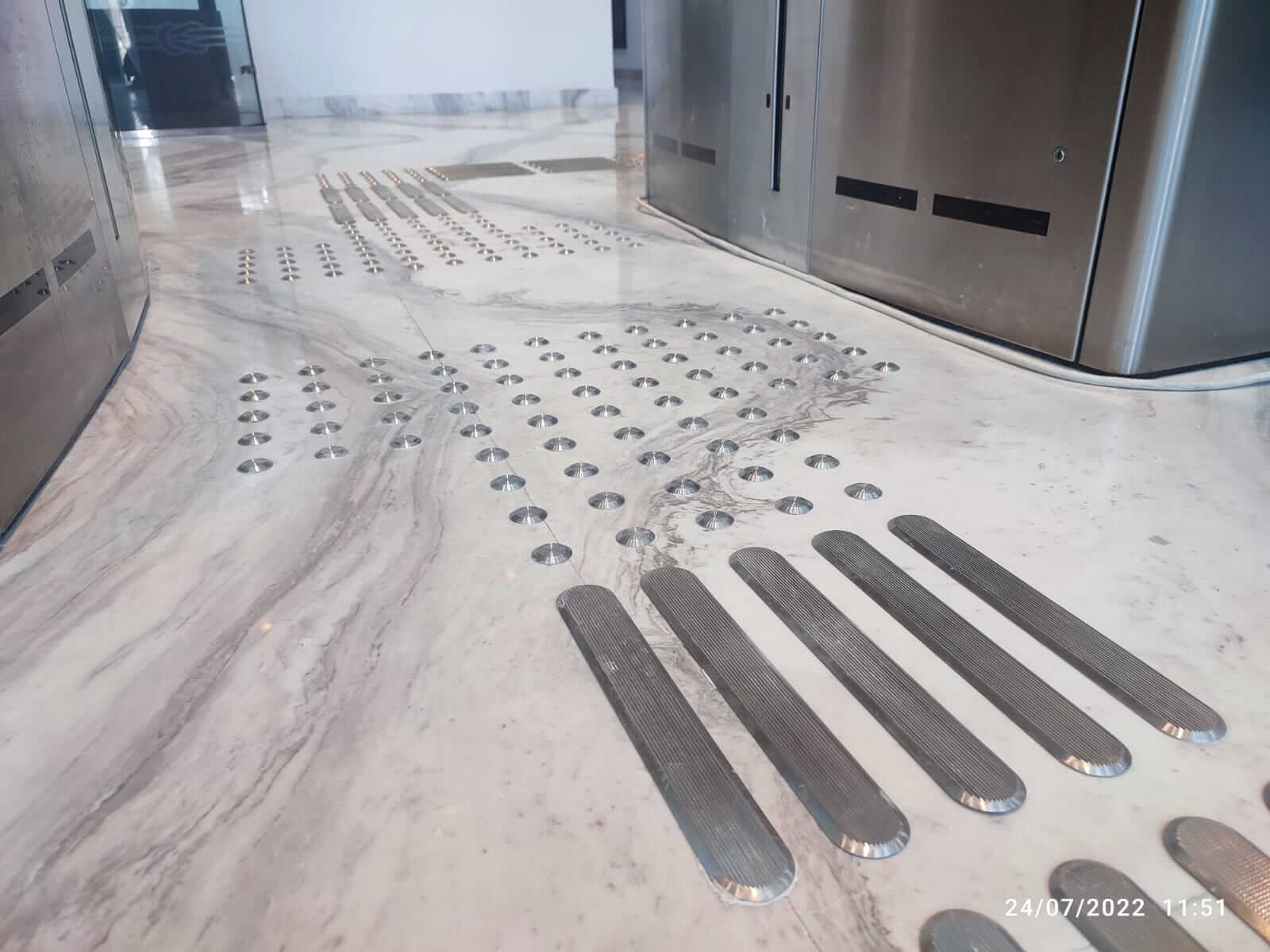

• Etihad Rail Network – Passenger and operational facilities • Dubai Metro Stations & RTA Walkways • American University of Dubai (AUD) • Dubai Courts – Al Manara Branch • Government Service Centers across Dubai & Abu Dhabi • Shopping Malls, Hospitals & Public Plazas

Installation Guidelines

1. Mono Pin Installation (Mechanical Core-Drill)

2. Mark hole positions using a standardized UAE tactile drilling template.

3. Core-drill holes into the substrate to the specified depth.

4. Clean holes thoroughly using compressed air and wire brushes to remove dust.

5. Inject high-strength epoxy resin adhesive into each hole.

6. Insert the SS316L mono pin studs firmly into place and align. Allow 12–24 hours full curing time.

7. 3M Self-Adhesive Installation (Surface Mount)

8. Ensure the floor substrate (marble, granite, tile) is completely smooth, dry, and free of dust or oils.

9. Clean the surface thoroughly using isopropyl alcohol or acetone.

10. Peel off the protective 3M VHB adhesive backing strip.

11. Position the stud onto the layout grid and press down firmly using a rubber mallet or firm hand pressure.

12. Keep the area free from heavy traffic and moisture for 24 hours to ensure a full adhesive bond.
