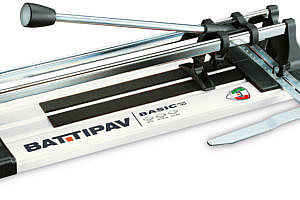

Big size breaking foot for cutting the tile easier. Cutting wheel Ø 15 mm. Tile cutting possible in every point due to a new system of angulation between the wheel and the breaking foot.

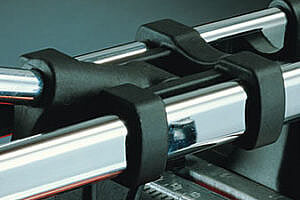

Sliding carriage on oval chromium plated bars and base in shaped steel for having high rigidity.
Diagonal fence adjustable from 45° to 90° (only for Basic Plus model) and graduated scale in cm. and inches.
Sliding carriage in techno-polymer of high resistance much more than aluminum.
– no clogging
– no risk of oxide
– no oil’s use

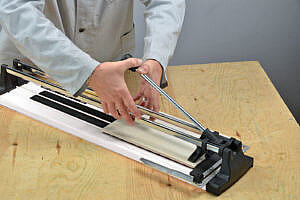

CUT BY PUSHING THE CUTTING LEVER
Cut by pushing the cutting lever. Possibility to break the tile in every point.
|MAX CUTTING THICKNESS||From 4 a 12 mm|
|MAX CUTTING LENGHT||400 mm|
|SIZE TILE FOR DIAGONAL CUTTING||280×280 mm|
|MACHINE’S DIMENSION IN STOCK||66x22x11 cm|
|CUTTING TYPE||TO PUSH cut|
|CUTTING TOOL DIMENSION||Ø15x6x1,5 mm|
|MACHINE’S DIMENSION||606x240xH98 mm|
|SCROLLBAR SECTION||Two oval bars 10x20x2 mm|
